Add Adaptive Live Push servers

Use Management Portal to add Adaptive Live Push servers that stream live video using the Mediasite Deliver Streaming Services (MDSS). These servers use Push distribution, which means the Recorder pushes the stream to the media server and does not make a connection from the server back to the Recorder.

 Mediasite Deliver supports HLS using fMP4 segments. HLS allows your users to view presentations on Apple iPod or iPad.

To add an Adaptive Live Push server:

1.  Click Recording > Content Servers > Add New and enter a name and description that will help you and other users identify the server easily.

2.  Select Adaptive Live Push as the Server Type.

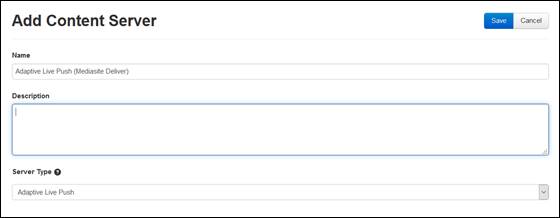

Add Adaptive Live Push server (MDSS): general settings

3.  Specify the server’s settings:

Settings

Details

Service URL

Mediasite uses this URL to connect to the service on the media server that manages live broadcast publishing points. Click the example URL to copy it in the field. Update the URL with your media server’s FQDN or IP address.

Encryption Key

Enter the same key specified when configuring MDS on the media server. The encryption key establishes a secure channel for communication between Mediasite and the media server.

Streaming Service

Mediasite Deliver

Push URL

URL used by the Recorder to push the media stream to a publishing point on the media server. Click the example URL to copy it in the field.  Update the URL with your media server’s FQDN or IP address.



4.  Optionally, add secondary media server as a fail over during live broadcasts. You will configure the secondary server the same way you configured the primary server. Make sure to replace "mediaserver" with the FQDN or IP address of the secondary media server.

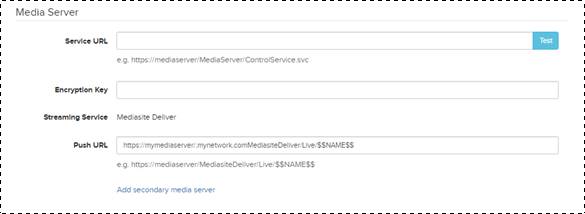

Add Adaptive Live Push server (MDSS): media server settings

5.  Specify the media distribution settings:

Settings

Details

Distribution URL

URL used to stream media to Mediasite Player. Click the example URL to copy it in the field. Update the URL with your media server’s FQDN or IP address. This automatically updates the value of the Smooth Streaming and HTTP Live Streaming URLs. The URLs reflect the streaming service selected and contains variables that are substituted at run time.

Enable Mediasite Authorization

Select check box to enable media authorization on publishing points created by the service for live presentations.

 CAUTION: Mediasite Authorization must also be enabled in Mediasite Deliver to use this feature. If it is not enabled and this option is selected, an error will appear when you start a live broadcast.

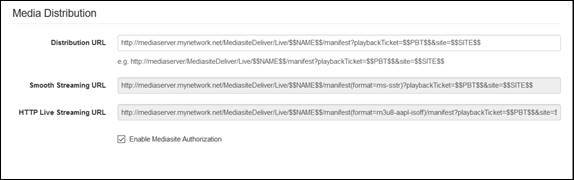

Add Adaptive Live Push server (MDSS): media distribution settings

6.  Optionally, click Add multicast distribution and specify the following multicast settings:

7.  Click Save.
