Configure Mosaic (Windows)

To configure Mediasite Mosaic on Windows, you will select your inputs. You can also, optionally, update the Preview and Record settings.

Mosaic uses the color theme you have already set in Windows. The examples in this guide use the light theme.

Select your inputs

Before you can begin recording you must select your inputs. Once you select your input devices, these will be the default settings for the microphone and camera. However, you can change them as needed. You must update the Window and Display input each time you launch Mosaic.

To select your inputs:

Navigate to the Capture page and select the inputs you want to use for your recording:

Options	Action
	Click the Microphone button to view the list of audio devices available on your device in the left panel. Select the audio input you want to use for this recording,
	Click the Camera button to view the list of audio devices available on your device.
	Click the Window or Display button to view the sources. From the drop-down list, select what you want to display in your recording: • Share your window: Select this option to view the windows open on your computer. Select the window you want to share in your recording. • Share your display: Select this option to view the screens available on your computer. If you have multiple screens, you can choose to share each screen or all screens. Select the option you want.

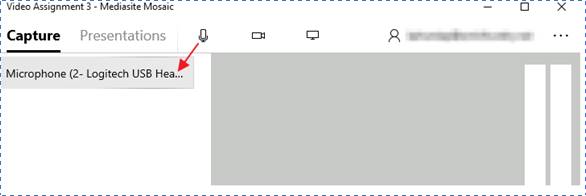

Mediasite Mosaic, Select capture inputs (light theme)

Update preview and record settings

Update the preview and record settings to customize your experience.

To update Mosaic’s preview and record settings:

1. Click the More button^… and select Settings from the drop-down menu.

2. Update the following settings as needed:

Options	Action
Mirror camera	Enable this feature to display the video preview in Mosaic as if you were viewing an image in the mirror, that is flipped horizontally. Enabled by default, this feature is useful if you are recording yourself (selfie mode). We recommend disabling this feature if you are recording someone else or using a screen capture device as the video input.
Enable window or display preview	Enable this feature to view the display you selected in Mosaic as you capture the content.
Automatically upload recorded presentations to My Mediasite	Enable this feature to upload a recording to My Mediasite once the recording is complete. You must have already registered Mosaic to My Mediasite.
Confirm before stopping a recording	Enable this feature to display a confirmation message When you click the Stop button.

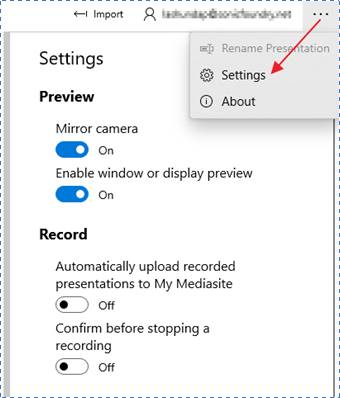

Update preview and record settings as needed (light theme)
